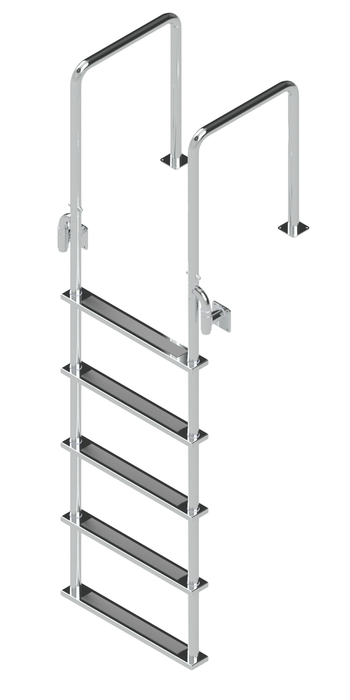

L-1222-LB Five-Step Stainless Steel Dock Ladder, Front Mount, Welded Flanges - 18.75" Handles
Quality raw materials and old-fashioned American craftsmanship result in a dock ladder that will perform exceptionally and look good for a lifetime. This heavy duty, corrosion-resistant stainless steel dock ladder is load tested at over 750 lbs. It has a lightly buffed finish and five (5) three-inch wide treads with anti-slip tape. The ladder handles are on 20.25" centers that extend 15.6" onto the dock surface. The ladder is easily installed and and comes with all the necessary installation hardware. Mounting hardware must be purchased separately.
The stainless steel dock ladder is fabricated from 1.5" diameter 16 gauge (.065 wall thickness), lightly buffed type 304 series stainless steel tubing. The ladder mounts to the dock using 7 gauge (.180 thick) mounting plates with four mounting holes. The mounting posts on the ladder slide into the tubular joints on the slip support mounting flanges and are held in place by the mount ring. The slip support mounting flanges locate the vertical centerline of the ladder to three inches off the dock face. The three-inch wide treads are fabricated from 14 gauge Type 304 Series stainless steel with a lightly buffed finish . The treads are spaced at 12" intervals through the length of the ladder and treated with anti-slip material.
View the Technical Data Sheet for dimensional information and installation instructions.
