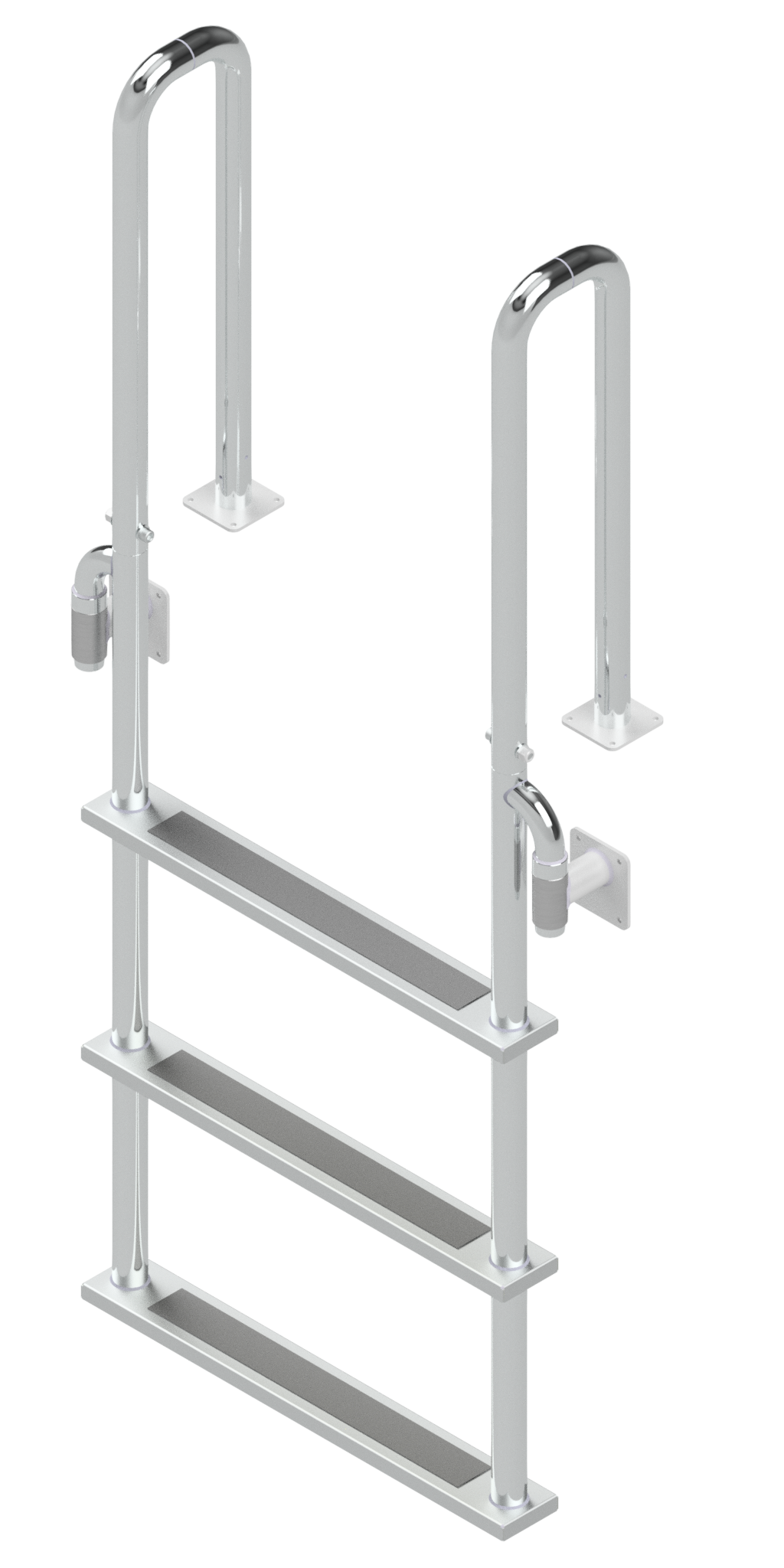

L-1200-LB Three-Step Stainless Steel Dock Ladder, Front Mount, Welded Flanges - 6" Handles

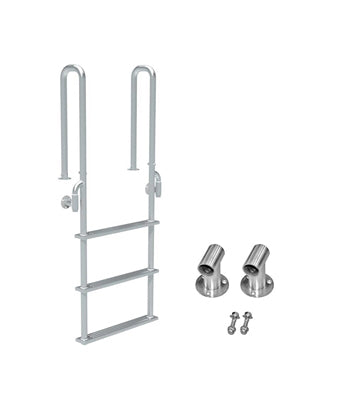

The quality of this heavy duty stainless steel dock ladder reflects the prime domestically sourced raw materials and old world American craftsmanship used in its fabrication. This heavy duty, corrosion-resistant stainless steel dock ladder is load tested at over 750 lbs. It has a lightly buffed finish and three (3) three-inch wide treads with anti-slip tape. The ladder handles are on six-inch centers that require only 4.6 inches of the dock surface. The ladder is easily installed and comes with all the necessary installation hardware. Mounting fasteners must be purchased separately.

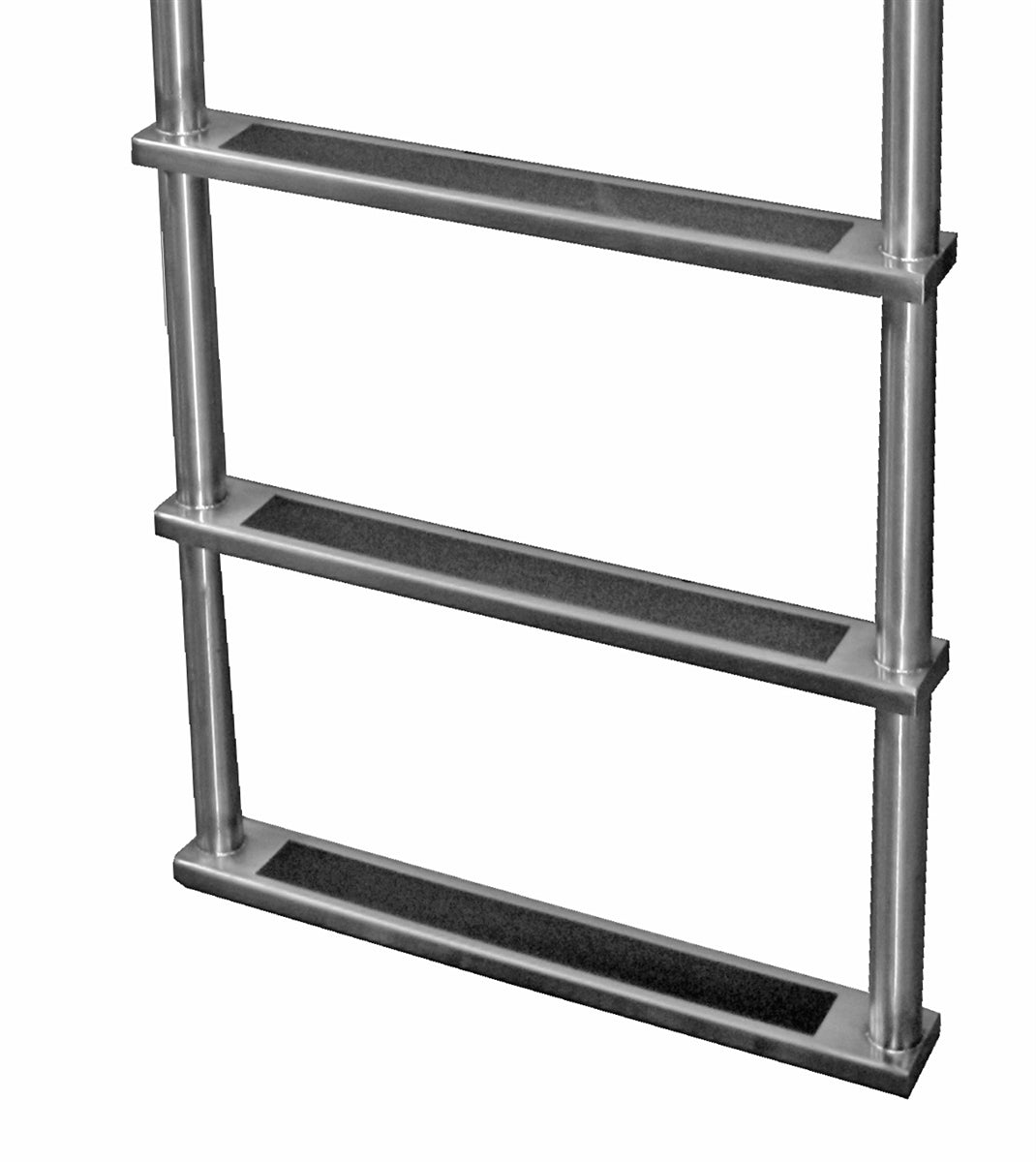

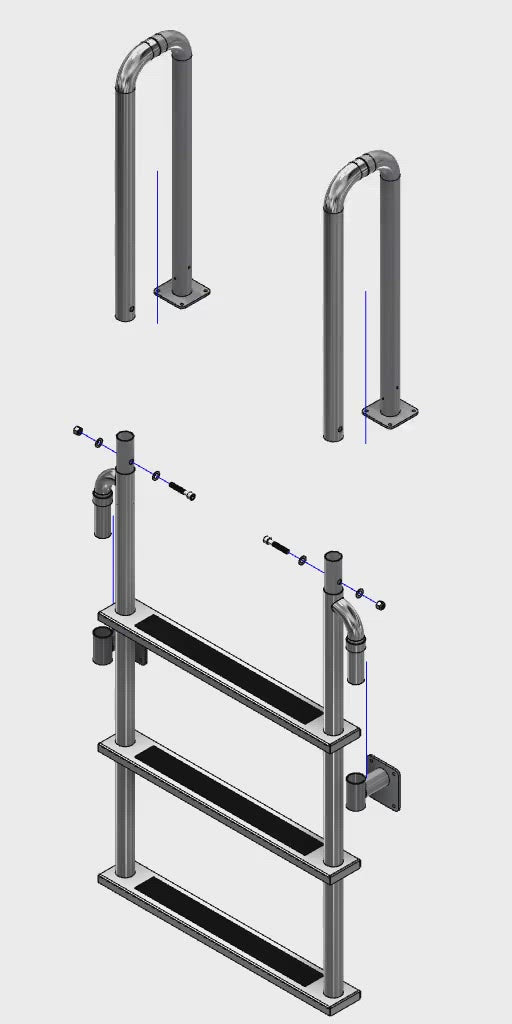

The stainless steel dock ladder is fabricated from 1.5" diameter 16 gauge (.065 wall thickness), lightly buffed stainless steel tubing. The ladder mounts to the dock using 3" square 7 gauge (.180 thick) mounting plates with four mounting holes. The mounting posts on the ladder slide into the front-mounted tubular slip support mounting rings. The three-inch wide treads are fabricated from 14 gauge Type 304 Series stainless steel with a lightly buffed finish . The treads are spaced at 12" intervals through the length of the ladder.
View the Technical Data Sheet for dimensional information and installation requirements.
